Description
Richpeace Garment CAD V10.0 With Super Nesting | Multi Language | Full Version | Working All Windows
Important features
DGS module–Free Design And Formula Design Feature
Customized Interface and User-defined toolbar can be set. Designer can set their own suitable working theme toolbar and design their own user interface. It can be Menswear, Womenswear, Children wear, underwear toolbar etc.
Free Design: Designer can freely draw the pattern pieces with their own habit.
Custom made formula design mode, capability for a huge library and size spec data on basic style instantly available. Allow to save and modify the existing library data, shorten the pattern work for designer. Completely solve the routine job on designer and pattern designer. Recall an existing design in DGS system, and various sizes can be created with referring to a given size table.
The most important feature is linked modification: include design lines linkage,patterns and design lines linkage, transfer dart tool,move and rotate adjust tool, mirror tool and other tools linkage, adjust one part and all other relevant parts are modified together, notch, buttonhole, drill, dart, pleat and other elements can also be linked.
Design & Grading part keep the original garment CAD software function, it can add dart, transfer dart, add pleats and so on, it provide rich seam styles, process identification, Various customizable line types. Allows users to create their own unit library, such as collars, cuffs, etc., and load them directly when used.
Grading part provide a variety of grading methods: design lines and patterns can be automatically grading,point grading, arrow keys grading, regular grading, and proportional grading, parallel grading and other special grading tools.
The button, grain line, notch, drill and other identifying can be edit on the design lines in grading part.
Grading part provides down content function, calculating the amount of filling of the whole piece or part,which is convenient for the down apparel company to calculate the amount and cost.
Grading part provides digital input function, and the efficiency and precision of the input patterns are much higher than those of the traditional digitizer.
Import other formats such as DXF, AAMA/ASTM/AUTOCAD.

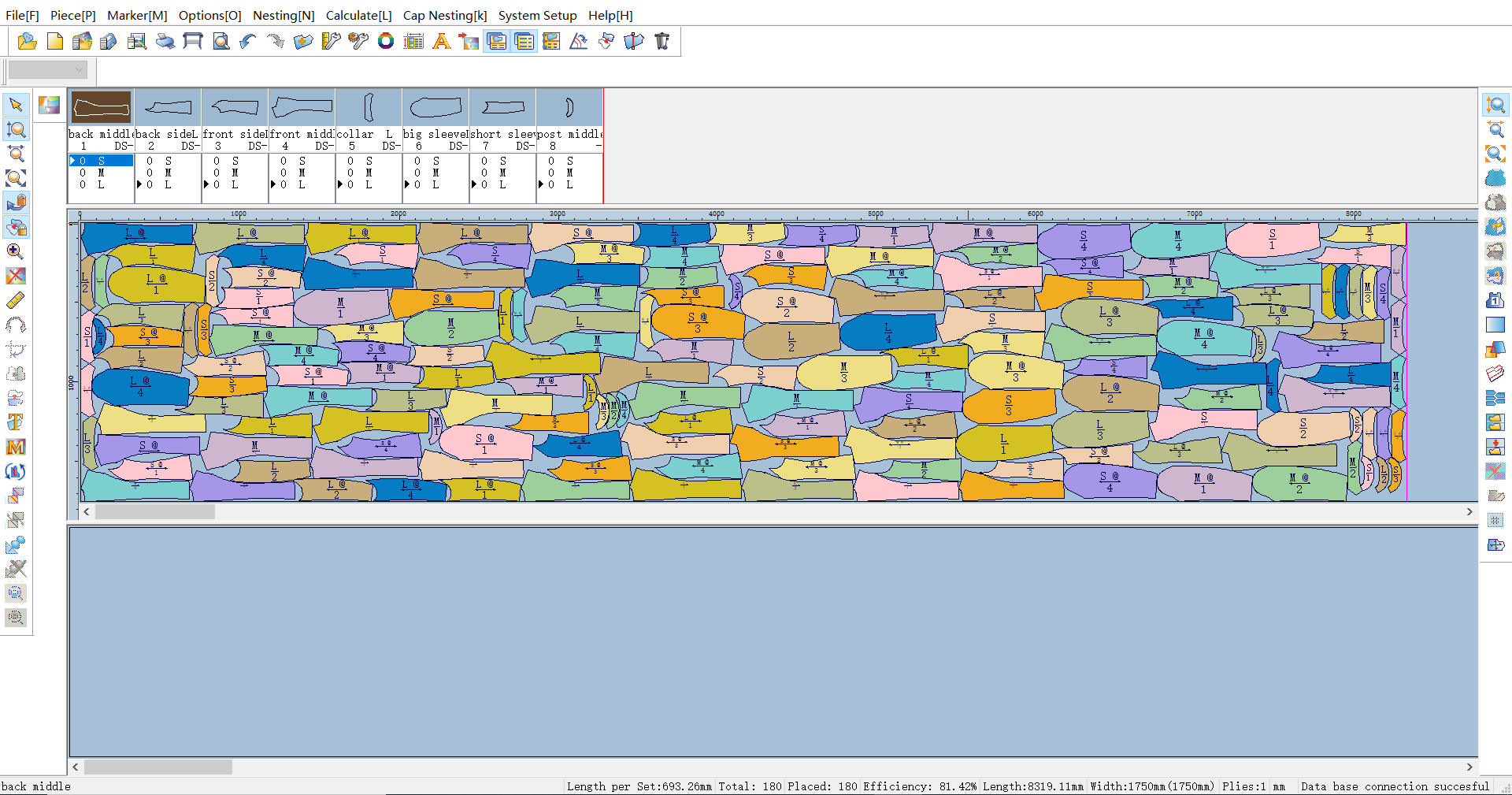

GMS Module–Garment Marker System
GMS can read design grading system files, dual interface can nest together. Providing Supernest,Automatic, manual and interactive, and other various nesting ways. Among of them, supernest is international innovative technology. System can automatically finish one lay of marker in a very short period, the fabric utilization can be or even higher than the manual nesting. Specially prevent the horizontal & vertical shading,
and mixed shading problem. It is possible to process multiple marker jobs in queue. Save time and improve productivity. Manual nesting, flexible sloping the patterns, fine-tuning and good utilization of fabrics.
GMS tailor-made cap function is used to toys, gloves, underwear, etc. Copy, inverted truss function to achieve a high utilization of the fabric.
GMS can read various HPGL files successfully, import the plot files of HPGL and the cutter format files and re-nesting.
GMS can be expected to quickly calculate the amount of cloth used and the number of pieces to be cut,increase production efficiency, increase control over the market, and save time and money!
The system supports nesting and cutting of the inner contours, connecting with output devices, printing small samples, drawing and cutting 1:1 patterns.

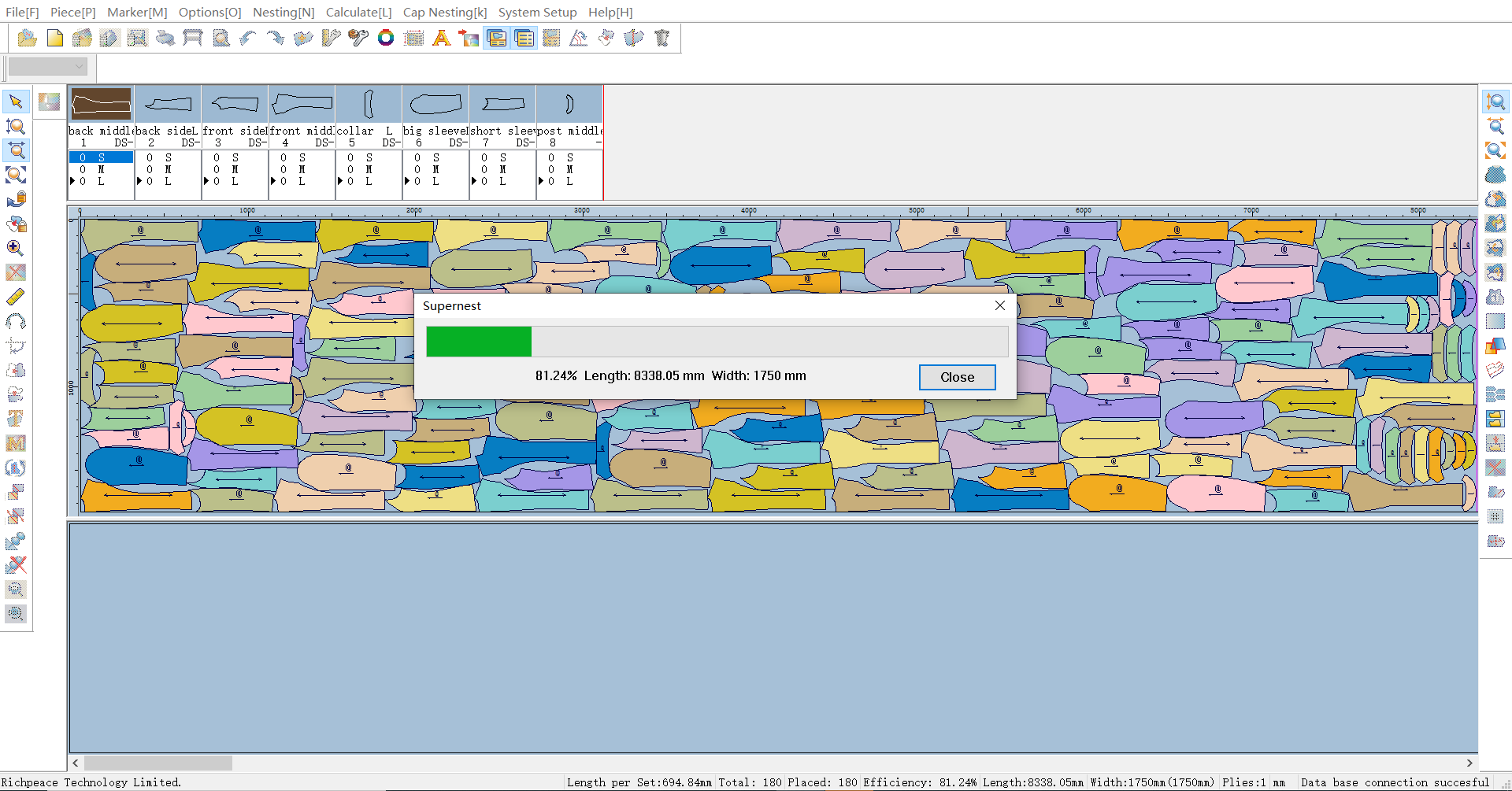

Supernest
Supernest is international innovative technology. System can automatically finish one lay of marker in a very short period, the fabric utilization can be or even higher than the manual nesting. Specially prevent the horizontal & vertical shading, and mixed shading problem. It is possible to process multiple marker jobs in queque. Save time and improve productivity.
Rotation and flip restrictions according to fabric.
Slop allowance.
Group Nesting.
Stripes & Plaids Nesting.
Specify Rotation Angle Marker
Calculation Of Optimal Utilization Width
Specify Rotation Angle Marker
Blemish Avoidance Nest
![5}K]7Z6K$K5M3LIZBMI319Y](https://www.richpeace.com/uploadfile/ueditor/image/202209/16620839945632a0.png "5}K]7Z6K$K5M3LIZBMI319Y")
Computer-Aided Design (CAD) RICHPEACE Garment CAD is a professional system for the garment and textile industry, produces the design patterns and the layout patterns.
You can design your interface and choose corresponding tool.
Design – a standard set of functions required for each designer plus a huge range of advanced features.
Automatically create various types of pleats, various types of gradation.
The gradation curves. The number size and height is not limited. Possible grading details in a rotated or inverted view.
The data Converter. In the standard software package includes a set of converters, allowing to make the model and layout CAD software by other manufacturers.
1) construction of the foundations of the underlying structures;
2) enter the curves with the digitizer;
3) the reproduction of patterns;
4) modeling, modification of patterns;
5) acceptance models in CAD formats: RICHPEACE, Gerber, Lectra and format standard AAMA/ANSI, DXF,TIP;
6) reception layouts in CAD formats: RICHPEACE, Gerber, Lectra;
7) export the trained models to other CAD systems;
8) the formation and output to the plotter;
9) system-wide functions.
1) input patterns with the digitizer;
2) creation of layouts;
4) the formation and output to the plotter, and cutting complex;
1) construction of the foundations of the underlying structures;
2) enter the curves with the digitizer;
3) the reproduction of patterns;
4) modeling, modification of patterns;
5) creation of layouts;
6) receiving models in CAD formats: RICHPEACE, Gerber, Lectra, and format of standard AAMA/ANSI, DXF,TIP;
7) Reception layouts in CAD formats: RICHPEACE, Gerber, Lectra;
8) prepared by export models to other CAD systems;
9) the formation and output to the plotter;
Jobs for SUPER Nester can come from other CAD programs in a particular format such as PLT, DYF, HPGL etc.
• no limit on the number of patterns for automatic layout
• processing time of a few minutes, depending on the complexity of the layout and number of patterns.
• the report file shows the result of SUPER Nester
• you can visually check and make changes to the layout made by the program SUPER Nester
• there is a choice of processing mode draft (one try) or Full (given by the processing time).
1) does automatic layout for 2-3 minutes.
2) saving fabric from 2% in comparison with an experienced specialist who spends much of the time.
3) saving labor, no manual operation is needed during the pickup.
4) SUPER Nester can also do layout fabrics with prints, in color or pattern.
